A lightweight vacuum gripper that makes a big difference

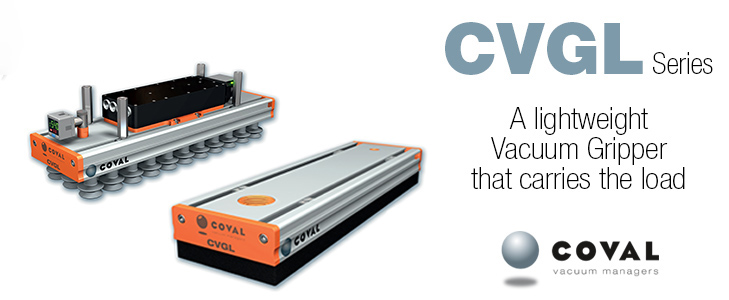

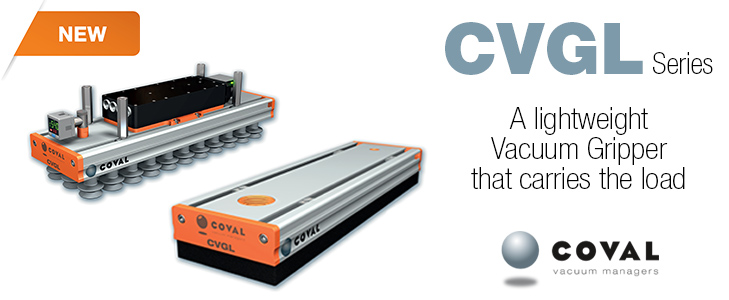

Compact and Light Vacuum Grippers, CVGL Series

A lightweight vacuum gripper that makes a big difference

The size and weight of the new CVGL vacuum grippers from COVAL make them the lightest and most compact range in the market.
The strict regime meets the expectations of manufacturers who rely on vacuum handling technology for their products and packaging.

"Weight is the enemy" is a well-known motto in the world of racing cars. This same is true in robotics. By reducing the weight and bulk of its vacuum chambers, COVAL enables integrators and manufacturers to incorporate them into robots with lower payloads. This translates into significant savings in terms of investment and operating costs.

The evolution has also occurred at the design level, resulting in a range of vacuum chambers with simplified lines. All connections are now carried out on top, completely freeing the sidewalls and guaranteeing greater ease of use, for example in boxing/unboxing applications

Modularity Above All

Despite the reduced size and weight, the CVGL is not a "light" version of the predecessor CVG range. They retain all the advantages of a modular range of vacuum Grippers:
. 3 standard lengths (424, 624 and 824 mm, or custom-made to suit the application),
. 3 gripping interface technologies (foam, suction cups and COVAL-flex),
. 3 suction flow rates, integrated or external generator.
They offer a "tailor-made" solution for vacuum handling of parts of various sizes, weights and materials.

Quick change plate System for CVGL COVAL range

To make the maintenance easier and increase the flexibility of the CVGL gripper range, COVAL has developed a simple quick change plate system. Easy to use, the system allows end user to replace used plate or change the plate pattern or technology (foam/cups).

An Example of the Benefits of FrenchFab
The CVGL design is based on the expertise gained by COVAL, as a partner to integrators and manufacturers for nearly 35 years, and also the innovative capabilities of its in-house design team.
They fully complement the COVAL range of vacuum pumps, suction cups and accessories for vacuum handling in the packaging industry. The CVGL vacuum grippers are manufactured in Montélier, France, underlining COVAL's commitment to the French Fab initiative.

A Wide Variety of Applications
Thanks to their high modularity and ease of integration in all scenarios, the CVGL vacuum grippers are used in many different industries: packaging, plastics, metal or wood, for the handling of porous and non-porous objects.

CVGL, What Makes the Difference:

• Compact and lightweight
• Standardization and modularity to ensure short delivery times
• High adaptability

. Discover the CVGL range
