Vacuum Switch with 3-colour Display, PSD 100 series
Presentation
The new PSD100 series mini-vacuum switch with display offers easy reading thanks to the size of its screen and its 3-color display.
Its compactness and lightness facilitate its integration on all machines.

Easily adjustable, it is equipped with an extremely precise electronic vacuum level sensor and has an adjustable digital output as well as an analog output.

The PSD100 has mounting accessories on option, making it very easy to install.

Advantages:
• 3-colour digital LCD display, easy readability.
• 6 pressure units available (kPa, bar, psi, inHg, mmHg, kgf/cm2).
• PNP version:
- 1 PNP digital output (NO or NC).
- 1 analog output (1-5V).
• PNP2 version:
2 PNP digital outputs (NO or NC).
• Double display showing the measured value and threshold value at the same time.
• "Key lock function" with indicator light, «Lock» mode with light indicator to prevent an accidental misadjustment.
• "Power-save function" with indicator light.
• 3 mounting solutions.
Specifications
. Pressure rating range: 0.0 - -101.3 kPa
. Pressure setting range: 10.0 - -101.3 kPa
. Max. pressure: 300 kPa
. Fluid: Air, non-corrosive/non-flammable gas
. Power supply voltage: 12 to 24 V DC ±10%, ripple (P-P) 10% or less
. Current consumption: ≤ 40 mA
. Switch output:
- 1 PNP digital output (2x on PNP2 version)
- Max. load current: 125 mA
- Max. supply voltage: 24 VDC
- Residual voltage: ≤ 1.5 V
. Analog output (voltage power) (PNP version only): Output voltage : 1 to 5 V
. 7 segment LCD display: Two colour (red / green) main display, orange sub-display (refresh rate: 5 times / 1sec.)
. Vacuum fitting: G1/8”-M, M5-F
. Weight: Approx. 45 g (with M8, 4-pin male connector)
Branch-specific applications

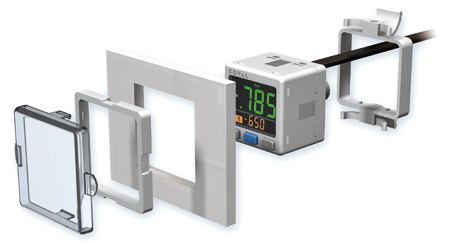

Accessories
  • PSDFIXA
    Vertical mounting bracket
  • PSDFIXB
    Horizontal mounting bracket
  • PSDFIXC
    Front attachment kit.
  • PSDFIXD
    Front attachment kit + front protective lid.
download
liens
CAD drawing
reference models
mod
Measuring range
Pdm
Connection
Rac
Connection
Cx
PSD100CPNP 1 PNP contact output (NO or NC) and 1 analog output (1-5V), 0/-1b G1/8"M; M5F M8
PSD100LPNP2 1 PNP contact output (NO or NC) and 1 analog output (1-5V), 0/-1b G1/8"M; M5F 2 m cable
PSDFIXA Vertical Mounting bracket
PSDFIXB Horizontal Mounting bracket
PSDFIXC Front attachment kit.
PSDFIXD Front attachment kit + front protective lid.
