VSA-BM series, Translucent Silicone 50 Shore A, 1.5 Bellows suction cup with Silicone Foam Ring Seal  ø 33mm
ref. : VSA33SIT5BM
characteristics
Suction cup type (tve) round
type of product (typp) suction cup
form (form) 1.5 Bellows
Diameter (ØA) 32mm
Suction cup stroke (f) 12mm
Tensile force (Ft) 3.37Lbf
material (mat) Silicone
Depth of housing fitting (B) 13mm
Weight (Mas) 7.5g
internal volume (vi) 5.3cm3
Internal neck diameter (Ød) 8mm
Height (H) 29.5mm
Diameter (Ø D) 18mm
Dimensions

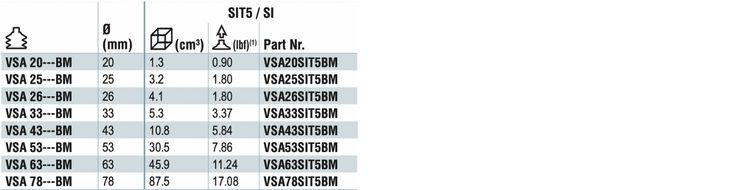

Suction Cup Properties
(1) Actual force of the suction cup in use with 65% vacuum and including a safety factor of 2 for horizontal handling.

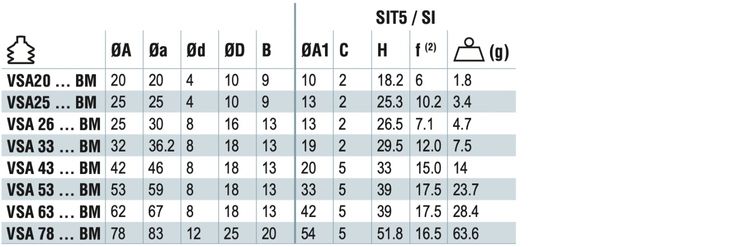

Suction Cup Dimensions
(2) f = Deflection of the suction cup.
Note: All dimensions are in mm.
The values represent the average characteristics of our products.
